A Pallet Racking Workbench is a heavy-duty bench with storage that can be made mobile and used in workshops, factories, garages, warehouses and other industrial applications. These workbenches are made out of pallet racking materials and are designed to provide a strong and durable work surface while satisfying your available space with its array if sizes. Space Rescue has two main types of Pallet Racking Workbenches available for sale in Sydney NSW, Melbourne VIC, Brisbane QLD, Adelaide SA, and Perth WA.

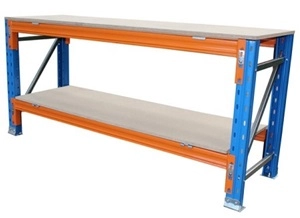

1. Pallet Racking Workbench Standard (PRS)
The PRS is a two-tier workshop heavy-duty workbench for sale with one underbench shelf. It can also be supplied as a mobile pallet racking workbench.
a) Bench Heights
The standard heavy-duty workbench height is 920mm from the ground to the bench surface.
b) Beam and Overall Bench Lengths
The beam lengths listed below contribute directly to the overall length of the pallet rack workbench. The overall length is calculated by adding the beam lengths plus 90mm for every frame required. Longer benches are easily created by joining two or more bays together. For example, a two-bay workbench using 1372mm plus 1524mm beams would require three frames. It’s overall length would be 90mm + 1372mm + 90mm + 1524mm + 90mm = 3166mm.
- 1372mm
- 1524mm
- 1829mm
- 2133mm
- 2438mm
- 2591mm
- 2743mm
- 3048mm
- 3350mm
- 3658mm
- 3810mm
- 4267mm
c) Bench Depths
- 609mm
- 838mm
- 1219mm
2. Pallet Racking Workbench Overhead (PRO)
The PRO is a four-tier heavy-duty workbench that was designed for a variety of industrial applications. In addition to the benchtop, it has three additional storage shelves: one underbench shelf and two overhead shelves. This pallet racking workbench can also be supplied in a mobile version.
a) Bench and Overhead Shelf Heights
- 920mm (benchtop)
- 1825mm (top overhead shelf)
b) Bench and Overall Bench Lengths
The beam lengths listed below contribute directly to the overall pallet rack bench length. Please refer to the PRS above for an explanation and an example of how to calculate the overall bench length.
- 1327mm
- 1524mm
- 1829mm
- 2133mm
- 2438mm
- 2591mm
- 2743mm
- 3048mm
- 3350mm
- 3658mm
- 3810mm
- 4267mm
c) Bench and Shelf Depth
i) Benchtop and Underbench Shelf Depths
- 609mm overall
- 838mm overall
ii) Overhead Shelf Depth
- 415mm overall
3. Static or Mobile
You may choose to add “a set of wheels,” that is, castors, to allow you to move your pallet rack workbench around, for example. These castors work especially well on smooth, clean concrete floors.
There is a choice of either swivel, fixed, braked, or non-braked in our range of six castors. The addition of a brake is undoubtedly a handy safety feature to encourage your mobile pallet racking workbench to stay put.
Furthermore, there are several different types of baseplates depending on whether you wish to mount the castors using four bolts or just a single bolt. Some of these castors are also compatible with our industrial steel workbenches.
Another factor to consider is the load to be applied to the mobile pallet racking workbench. Within this castor range, three castors are load-rated at 100 kg per castor, while the other three are rated at 300 kg per castor.
Lastly, the wheel material is red in colour and made from polyurethane. The diameter varies according to the capacity. The medium-duty castor (100kg capacity) has a 100mm diameter wheel (and 30mm wide), while the heavy-duty castors have a 125mm diameter wheel (and 50mm width).
4. Finishes
Pallet racking workbenches are quite durable in performance and finish. Moreover, the frames (or vertical components) use pre-galvanised steel, giving them a silver appearance due to the zinc finish. Additionally, the beams (horizontal members) feature a powder coat enamel paint finish, presenting an orange colour that offers a smart contrast with the frames.
5. Strength of the Pallet Racking Workbench
The pallet racking workbench is a very strong , heavy-duty bench for a number of reasons.
Firstly, the components that form the skeleton of these units are all made out of steel.
Secondly, cold rolled folds within the posts, braces and beams adds an inherent strength. The nature of the fold is that it improves the stiffness of a steel section and improves its buckling characteristics.
Thirdly, the front-to-back rigidity is second to none due to the incorporation of a truss-like support frame in lieu of simple posts.
Finally, the left-to-right stability and load-carrying capacity of the bench itself are not just due to the steel materials used but also to the inherent strength of the pallet racking beam-to-frame connection.
6. Benefits
The main benefits of pallet rack workbenches are the variety of sizes available along with their versatility, modularity, and strength.
(a) Variety of sizes
Similar to its big brother, pallet racking, there are many off-the-shelf sizes available in both the frames and beams to make an array of different sizes.
(b) Versatility
As outlined in the usage section, there are lots of different accessories available to change the style and functionality of these versatile workstations. For example, with the simple addition of castors, you can create a mobile pallet rack workbench.
(c) Modularity
Modularity of pallet racking components allows for easy addition of beam levels and extra bays to change the configuration and purpose of the bench.
7. Options and Accessories
The following is a list of options and accessories for our Pallet Racking Workbenches:
(a) Board supports… add extra strength to the shelf and are available for 838mm and 1219mm deep shelves.
(b) Benchtops and shelves: some benchtops and shelves are available in either particleboard, MDF board, mesh, melamine, or steel.
(c) Extra shelves. You may also add in extra shelves if needed.
(d) Splashbacks: Please advise if you specifically require a splashback fitted to your pallet rack workbench.
(e) Louvred panels, hooks, and bins; please also advise if you would like to create a hanging feature for the storage of tools and other hardware.
(f) Castors… you may also like to include and select from our range of castors described above.
8. Usage
Here are some common uses for pallet racking workbenches:
- Industrial and commercial settings
- Assembly work: provide a sturdy and stable work surface for assembling products or components.
- Packaging is used to package products or prepare them for shipping.
- Work Cells: suitable for the creation of individual manual work cells
- Inspection and testing: used to inspect and test products or components.
- Maintenance and repair: provide a stable work surface for performing maintenance and repair tasks on machinery and equipment. A mobile workbench would be useful in this application.
- Material handling: they create a staging area for incoming or outgoing materials, which can be
- Storage: they store tools, equipment, and supplies.
- Quality control: suitable for use as a dedicated workspace for quality control inspections, for example.
- Laboratory work: pallet rack workbenches are suitable for use in laboratory settings, providing a clean, stable work surface, for example.
- Food preparation: these workbenches are suitable for food preparation and processing with food-grade surfaces.
- Workshop workbenches provide a space for cutting, fixing, and cleaning, for example.
- Artisanal work: suitable for use by artisans such as woodworkers, metalworkers, and jewellers, providing a sturdy surface for their craft.
In summary, these are just a selection of unlimited examples illustrating their many uses. Of course, their versatility makes them a valuable addition to any industrial or commercial setting.
9. Similar Products
You may also be interested in our mezzanine floors?
10. Availability & Delivery
Space Rescue deliver pallet racking workbenches in flat-pack form nationwide from our warehouses in NSW, VIC, QLD, SA, and WA.
